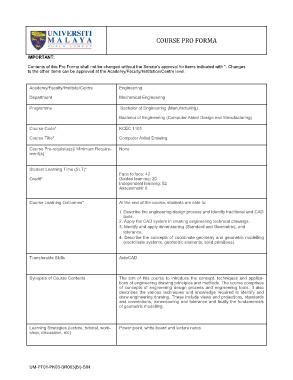

COURSE PRO FORMA

IMPORTANT:

Contents of this Pro Forma shall not be changed without the Senate’s approval for items indicated with *. Changes
to the other items can be approved at the Academy/Faculty/Institution/Centre level.

Academy/Faculty/Institute/Centre Engineering

Department Mechanical Engineering

Programme Bachelor of Engineering (Manufacturing)
Bachelor of Engineering (Computer Aided Design and Manufacturing)

Course Code* KCEC 1101
Course Title* Computer Aided Drawing

Course Pre-requisite(s)/ Minimum Require- None
ment(s)

Student Learning Time (SLT)*
Face to face: 42
Credit* Guided learning: 20
Independent learning: 52
Assessment: 6

Course Learning Outcomes* At the end of the course, students are able to:

1. Describe the engineering design process and Identify traditional and CAD
tools.
2. Apply the CAD system in creating engineering technical drawings.
3. Identify and apply dimensioning (Standard and Geometric), and
tolerance.
4. Describe the concepts of coordinate geometry and geometric modelling
(coordinate systems, geometric elements, solid primitives).

Transferable Skills AutoCAD

Synopsis of Course Contents The aim of this course to introduce the concept, techniques and applica-
tions of engineering drawing principles and methods. The course comprises
of concepts of engineering design process and engineering tools. It also
describes the various techniques and knowledge required to identify and
draw engineering drawing. These include views and projections, standards
and conventions, dimensioning and tolerance and finally the fundamentals
of geometric modelling.

Learning Strategies (lecture, tutorial, work- Power point, white board and lecture notes
shop, discussion, etc)
