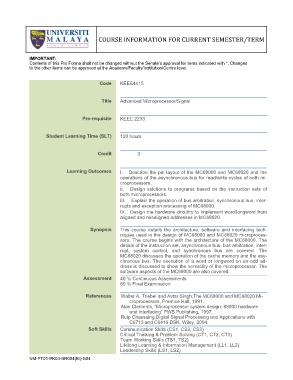

COURSE INFORMATION FOR CURRENT SEMESTER/TERM

IMPORTANT:
Contents of this Pro Forma shall not be changed without the Senate’s approval for items indicated with *. Changes
to the other items can be approved at the Academy/Faculty/Institution/Centre level.

Code KEEE4415

Title Advanced Microprocessor/Signal

Pre-requisite KEEE 2233

Student Learning Time (SLT) 120 hours

Credit 3

Learning Outcomes i. Describe the pin layout of the MC68000 and MC68020 and the
operations of the asynchronous bus for read/write cycles of both mi-
croprocessors.
ii. Design solutions to programs based on the instruction sets of
both microprocessors.

iii. Explain the operation of bus arbitration, synchronous bus, inter-
rupts and exception processing of MC68000.
iv. Design the hardware circuitry to implement word/longword from
aligned and misaligned addresses in MC68020.

Synopsis This course details the architecture, software and interfacing tech-
niques used in the design of MC68000 and MC68020 microproces-
sors. The course begins with the architecture of the MC68000. The
details of the instruction set, asynchronous bus, bus arbitration, inter-
rupt, system control, and synchronous bus are covered. The
MC68020 discusses the operation of the cache memory and the asy-
chronous bus. The execution of a word or longword on an odd ad-
dress is discussed to show the versatility of the microprocessor. The
software aspects of the MC68000 are also covered.
Assessment 40 % Continuous Assessments
60 % Final Examination

References Walter A. Triebel and Avtar Singh,The MC68000 and MC68020 Mi-
croprocessors, Prentice Hall, 1991.
Alan Clements, “Microprocessor system design: 68000 hardware
and interfacing” PWS Publishing, 1997.
Rulp Chassaing,Digital Signal Processing and Applications with
C6713 and C6416 DSK, Wiley, 2004.
Soft Skills Communication Skills (CS1, CS2, CS3)
Critical Thinking & Problem Solving (CT1, CT2, CT3)
Team Working Skills (TS1, TS2)
Lifelong Learning & Information Management (LL1, LL2)
Leadership Skills (LS1, LS2)
