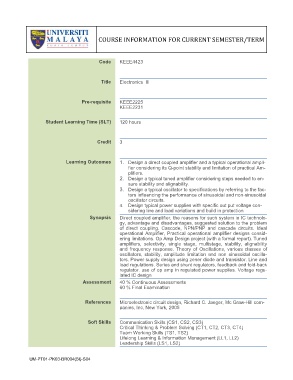

COURSE INFORMATION FOR CURRENT SEMESTER/TERM

Code KEEE4423

Title Electronics lll

Pre-requisite KEEE2225
KEEE2231

Student Learning Time (SLT) 120 hours

Credit 3

Learning Outcomes 1. Design a direct coupled amplifier and a typical operational ampli-
fier considering its Q-point stability and limitation of practical Am-
plifiers.
2. Design a typical tuned amplifier considering steps needed to en-
sure stability and alignability.

3. Design a typical oscillator to specifications by referring to the fac-
tors influencing the performance of sinusoidal and non-sinusoidal
oscillator circuits.
4. Design typical power supplies with specific out put voltage con-
sidering line and load variations and build in protection
Synopsis Direct coupled amplifier, the reasons for such system in IC technolo-
gy, advantage and disadvantages, suggested solution to the problem
of direct coupling. Cascode, NPN/PNP and cascade circuits. Ideal
operational Amplifier, Practical operational amplifier designs consid-
ering limitations. Op Amp Design project (with a formal report). Tuned
amplifiers, selectivity, single stage, multistage, stability, alignability

and frequency response. Theory of Oscillations, various classes of
oscillators, stability, amplitude limitation and non sinusoidal oscilla-
tors. Power supply design using zener diode and transistor. Line and
load regulations. Series and shunt regulators, feedback and fold-back
regulator. use of op amp in regulated power supplies. Voltage regu-
lated IC design
Assessment 40 % Continuous Assessments
60 % Final Examination

References Microelectronic circuit design, Richard C. Jaeger, Mc Graw-Hill com-
panies, Inc, New York, 2005

Soft Skills Communication Skills (CS1, CS2, CS3)
Critical Thinking & Problem Solving (CT1, CT2, CT3, CT4)
Team Working Skills (TS1, TS2)
Lifelong Learning & Information Management (LL1, LL2)
Leadership Skills (LS1, LS2)
