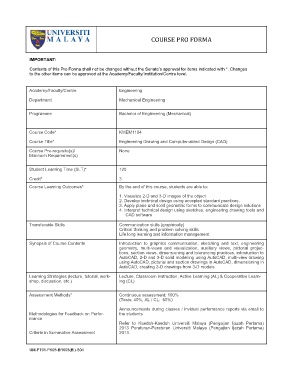

COURSE PRO FORMA
IMPORTANT:
Contents of this Pro Forma shall not be changed without the Senate’s approval for items indicated with *. Changes
to the other items can be approved at the Academy/Faculty/Institution/Centre level.
Academy/Faculty/Centre Engineering
Department Mechanical Engineering
Programme Bachelor of Engineering (Mechanical)
Course Code* KMEM1104
Course Title* Engineering Drawing and Computer-aided Design (CAD)
Course Pre-requisite(s)/ None
Minimum Requirement(s)
Student Learning Time (SLT)* 120
Credit* 3
Course Learning Outcomes* By the end of this course, students are able to:
1. Visualize 2-D and 3-D images of the object
2. Develop technical design using accepted standard practices.
3. Apply plane and solid geometric forms to communicate design solutions
4. Interpret technical design using sketches, engineering drawing tools and
CAD software
Transferable Skills Communication skills (graphically)
Critical thinking and problem solving skills
Life long learning and information management
Synopsis of Course Contents Introduction to graphics communication, sketching and text, engineering
geometry, multi-views and visualization, auxiliary views, pictorial projec-
tions, section views, dimensioning and tolerancing practices, introduction to
AutoCAD, 2-D and 3-D solid modelling using AutoCAD, multi-view drawing
using AutoCAD, pictorial and section drawings in AutoCAD, dimensioning in
AutoCAD, creating 2-D drawings from 3-D models.
Learning Strategies (lecture, tutorial, work- Lecture, Classroom instruction, Active Learning (AL) & Cooperative Learn-
shop, discussion, etc.) ing (CL)
Assessment Methods* Continuous assessment: 100%
(Tests: 40%, AL / CL: 60%)
Announcements during classes / invidual performance reports via email to
Methodologies for Feedback on Perfor- the students
mance
Refer to Kaedah-Kaedah Universiti Malaya (Pengajian Ijazah Pertama)
2013 Peraturan-Peraturan Universiti Malaya (Pengajian Ijazah Pertama)
Criteria in Summative Assessment 2013.
